Single Stage Pressure Regulators
General Details
GRAVITY single stage pressure regulator fully conforms to all paragraphs of IS:6901, these single stage regulators incorporate proven regulator design, spring-loaded valve, providing finer performance and extended life. This together with heavy-duty construction provides trouble-free working. The single stage series comprises a wide range of versatile regulators designed specifically for use in welding, gas cutting & heating applications. A single stage pressure regulator is mainly preferred for cutting operations.
Features of Single Stage Pressure Regulator
- Body and bonnet are made from high quality forged brass .
- Operational data printed on bonnet .
- Soft valve seat to ensure leak tightness .
- Safety relief valve protects the regulator in event of over-pressurization .
- Sintered metal filter reduces contamination , protecting the seat from damage .
- Precise & clear easy to read pressure gauges .
Specifications
| MODEL | ITEM CODE | GAS SEVICE | MAX . INLET PRESSURE (bar) | MAX. OUTLET PRESSURE (bar) | FLOW RATE M3/hr(Min.) | INLET CONNECTION | OUTLET CONNECTION |
| 11OX | 1010001101 | OXYGEN | 300 | 10 | 30 | 5/8” BSP(RH) | 3/8” BSP(RH) |
| 11DA | 1010001102 | ACETYLENE | 25 | 0.8 | 2 | 5/8” BSP(LH) | 3/8” BSP(LH) |

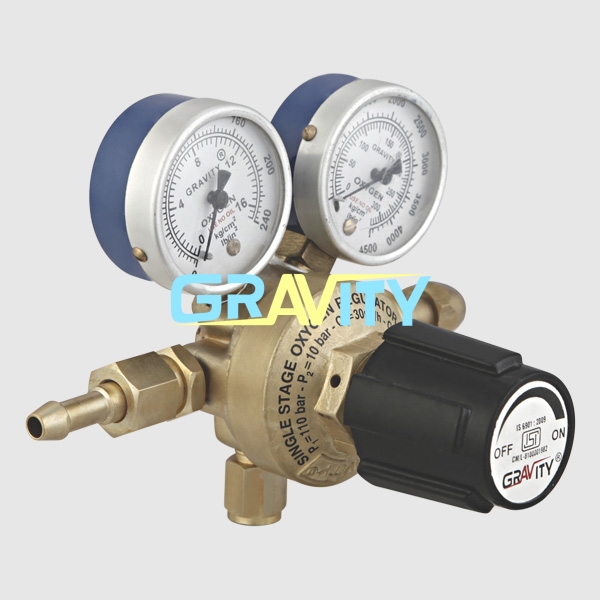

| 22OX | 1010001105 | OXYGEN | 300 | 10 | 30 | 5/8” BSP(RH) | 3/8” BSP(RH) |
| 22DA | 1010001106 | ACETYLENE | 25 | 0.8 | 2 | 5/8” BSP(LH) | 3/8” BSP(LH) |

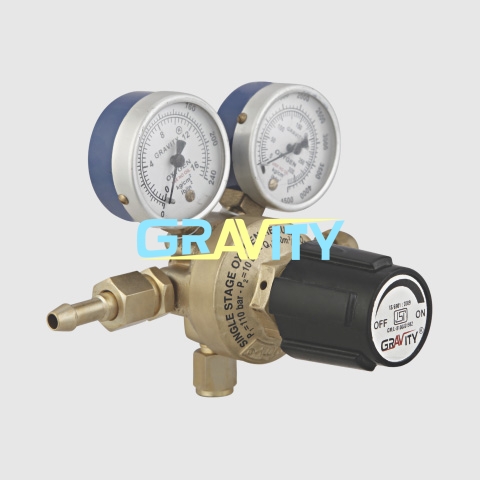

| 22AR | 1010001107 | ARGON | 300 | 10 | 30 | 5/8” BSP(RH) | 3/8” BSP(RH) |
| 22CO | 1010001108 | CO2 | 300 | 4 | 4 | 7/8” BSP(RH) | 3/8” BSP(RH) |
| 22NI | 1010001109 | NITROGEN | 300 | 10 | 30 | 5/8” BSP(RH) | 3/8” BSP(RH) |
