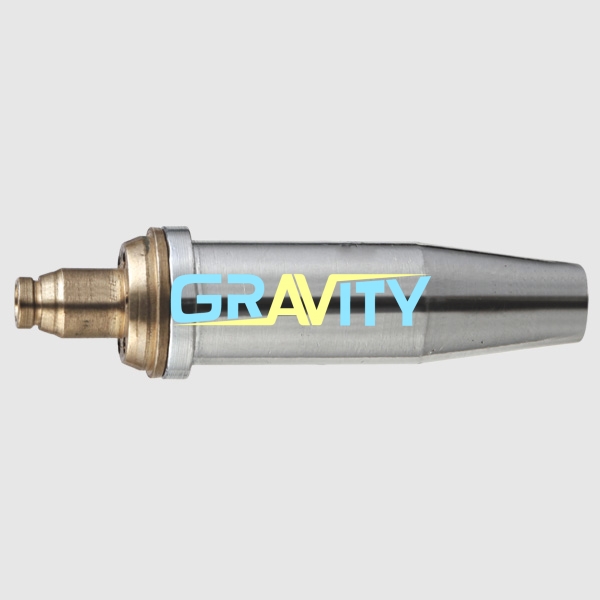

Gas Cutting Nozzle

General Details

Ideal for gas cutting across a range of applications , CUTARC cutting nozzles are of  two seat type & comes in different sizes for cutting steel of 3 m.m to 12 inch thickness . Acetylene nozzles are one piece design & are called “A” type while alternative fuel gas nozzles are two piece design & are called “B” type . These nozzles ae faster , gives cleaner cut providing narrow kerf , cuts expensive labour time & saves on gas consumption costs giving dependable performance .

Features
  • The high copper content gives nozzles greater resistance to reflected heat , permits cooler operation & dissipates
    more heat .
  • The smooth finish of the gas ports assures stable gas flows & superior cutting oxygen stream resulting in clear &
    smooth cuts with narrow kerf width .
  • Precision machined taper seat .
  • The high copper percentage conducts heat away from the nozzle face , keeping them relatively cool thus slag
  • adherence to the nozzle face is reduced .
  • Available for different fuel gases in different sizes as per cutting requirement from 3 mm to 12 inches .
  • Flame testing of nozzzles gives consistent high quality performance
    Preheat ports are closely spaced around cutting orifice for greater concentration of preheat flames .



CUTTING CHART

Specifications
NOZZLE SIZE 1/32 3/64 1/16 5/64 3/32 7/64 1/8
PLATE THICKNESS (M.M) 6 12 100 150 200 250 300
